Intel i5 1235u 10-Core CPU, 2 x 10GbE, 8K HDMI, 2 x TBT4, Diskless

  • Supports Third-Party Drives: Western Digital, Seagate, Toshiba, and other third-party hard drives are among the many that UGREEN NASync is compatible with.

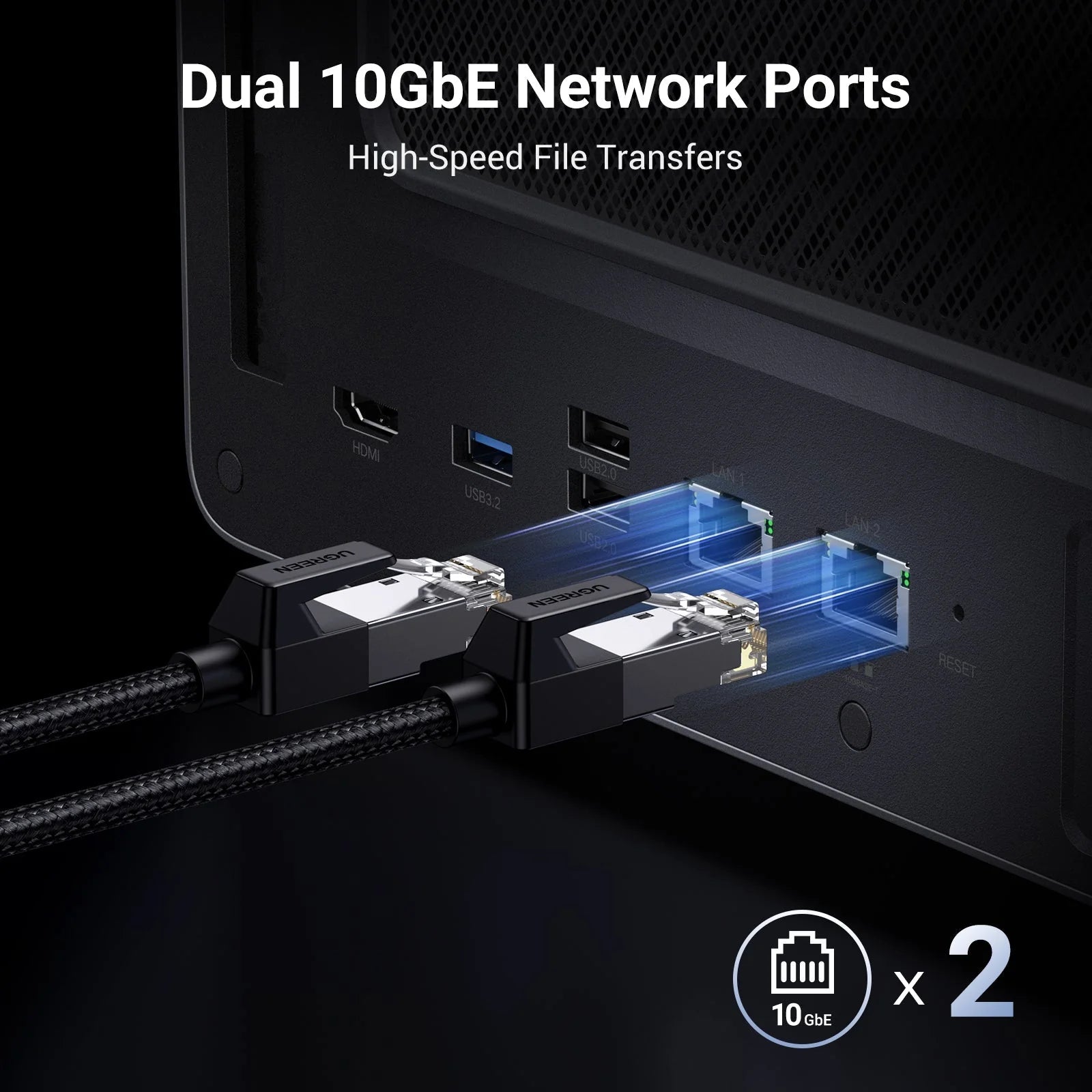

  • Dual 10GbE Network Ports: A 20G bandwidth can be created by combining two 10GbE high-speed network ports, allowing for download speeds of up to 2500 MB/s.
  • 12th Gen 10-core Intel® Core™ Processor: Processing performance is significantly enhanced over earlier processors with a 12th Gen, 10-core, 12-thread Intel® Core™ i5 Processor.
  • 6-Bay, 196TB Massive Data Storage: The NASync DXP6800 Pro has a maximum storage capacity of 196TB thanks to its six SATA and two M.2 NVMe drive bays. and is compatible with JBOD, Basic, RAID0, RAID1, RAID5, RAID6, and RAID10. NASync functions as a movie library, photo album, and file storage space all in one by storing thousands of HD movies, images, and documents.
  • One All-Inclusive App: The NAS App combines all of these features into one location rather than requiring users to download separate apps for different purposes. From one handy location, access Storage Manager, Files, Photos, and more.
  • Expandable 8GB DDR5 Memory: 8GB DDR5 4800MHz offers enhanced system and software performance along with the newest processing speeds.
  • AI Photo Album: Organizes your images automatically by identifying objects, scenes, faces, and locations. Additionally, it can quickly eliminate duplicates, saving you time and storage space.
Supported Languages English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語
Drive Bays 6-Bay (SATA)
Operating System UGOS Pro
CPU Model 1235u
CPU Brand & Architecture Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads
Memory (RAM) 8GB DDR5
ODECC Supported
Expandable RAM (Max) 64GB
Flash Memory (System Disk) SSD 128GB
SATA Drive Bays 6
M.2 SSD Drive Slots 2
RAID JBOD/Basic/0/1/5/6/10
Maximum Storage 196TB (6x 30TB + 2x 8TB)
LAN Ports (RJ45) 2x 10GbE
PCIe Expansion 1x PCIe x4

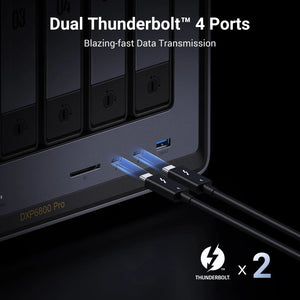

Thunderbolt™ 4 Ports 2
High-Speed USB Ports (Front Panel) 2x Thunderbolt 4 (40Gb/s)
High-Speed USB Ports (Rear Panel) 2x USB-A 2.0; 1x USB-A 3.2
USB 2.0 (Rear Panel) 2x USB-A (480Mb/s)
SD Card Reader SD 4.0
HDMI 8K
Wi-Fi -
Product Dimensions L11.54×W10.16×H7.87 inches
Power Consumption 43.07 W (drive access)
24.91 W(drive hibernation)

Intel i5 1235u 10-Core CPU, 2 x 10GbE, 8K HDMI, 2 x TBT4, Diskless

  • Supports Third-Party Drives: Western Digital, Seagate, Toshiba, and other third-party hard drives are among the many that UGREEN NASync is compatible with.
  • Dual 10GbE Network Ports: A 20G bandwidth can be created by combining two 10GbE high-speed network ports, allowing for download speeds of up to 2500 MB/s.
  • 12th Gen 10-core Intel® Core™ Processor: Processing performance is significantly enhanced over earlier processors with a 12th Gen, 10-core, 12-thread Intel® Core™ i5 Processor.
  • 6-Bay, 196TB Massive Data Storage: The NASync DXP6800 Pro has a maximum storage capacity of 196TB thanks to its six SATA and two M.2 NVMe drive bays. and is compatible with JBOD, Basic, RAID0, RAID1, RAID5, RAID6, and RAID10. NASync functions as a movie library, photo album, and file storage space all in one by storing thousands of HD movies, images, and documents.
  • One All-Inclusive App: The NAS App combines all of these features into one location rather than requiring users to download separate apps for different purposes. From one handy location, access Storage Manager, Files, Photos, and more.
  • Expandable 8GB DDR5 Memory: 8GB DDR5 4800MHz offers enhanced system and software performance along with the newest processing speeds.
  • AI Photo Album: Organizes your images automatically by identifying objects, scenes, faces, and locations. Additionally, it can quickly eliminate duplicates, saving you time and storage space.
Supported Languages English, Deutsch, Français, Español, Português, Italiano, 中文, 日本語
Drive Bays 6-Bay (SATA)
Operating System UGOS Pro
CPU Model 1235u
CPU Brand & Architecture Intel X86 12th Generation Intel® Core™ i5 10 Cores 12 Threads
Memory (RAM) 8GB DDR5
ODECC Supported
Expandable RAM (Max) 64GB
Flash Memory (System Disk) SSD 128GB
SATA Drive Bays 6
M.2 SSD Drive Slots 2
RAID JBOD/Basic/0/1/5/6/10
Maximum Storage 196TB (6x 30TB + 2x 8TB)
LAN Ports (RJ45) 2x 10GbE
PCIe Expansion 1x PCIe x4
Thunderbolt™ 4 Ports 2
High-Speed USB Ports (Front Panel) 2x Thunderbolt 4 (40Gb/s)
High-Speed USB Ports (Rear Panel) 2x USB-A 2.0; 1x USB-A 3.2
USB 2.0 (Rear Panel) 2x USB-A (480Mb/s)
SD Card Reader SD 4.0
HDMI 8K
Wi-Fi -
Product Dimensions L11.54×W10.16×H7.87 inches
Power Consumption 43.07 W (drive access)
24.91 W(drive hibernation)
UGREEN by UGREEN

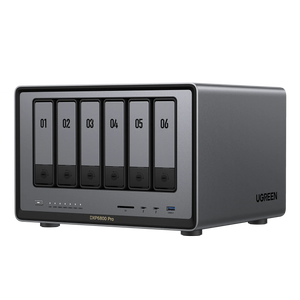

UGREEN NASync DXP6800 Pro
